The Engine Test System is a desktop-based monitoring application designed to measure and analyze engine performance parameters in real time. It communicates with connected devices using Modbus protocol and displays key parameters such as speed, torque, voltage, current, power, frequency, and efficiency while also providing configuration and reporting features.

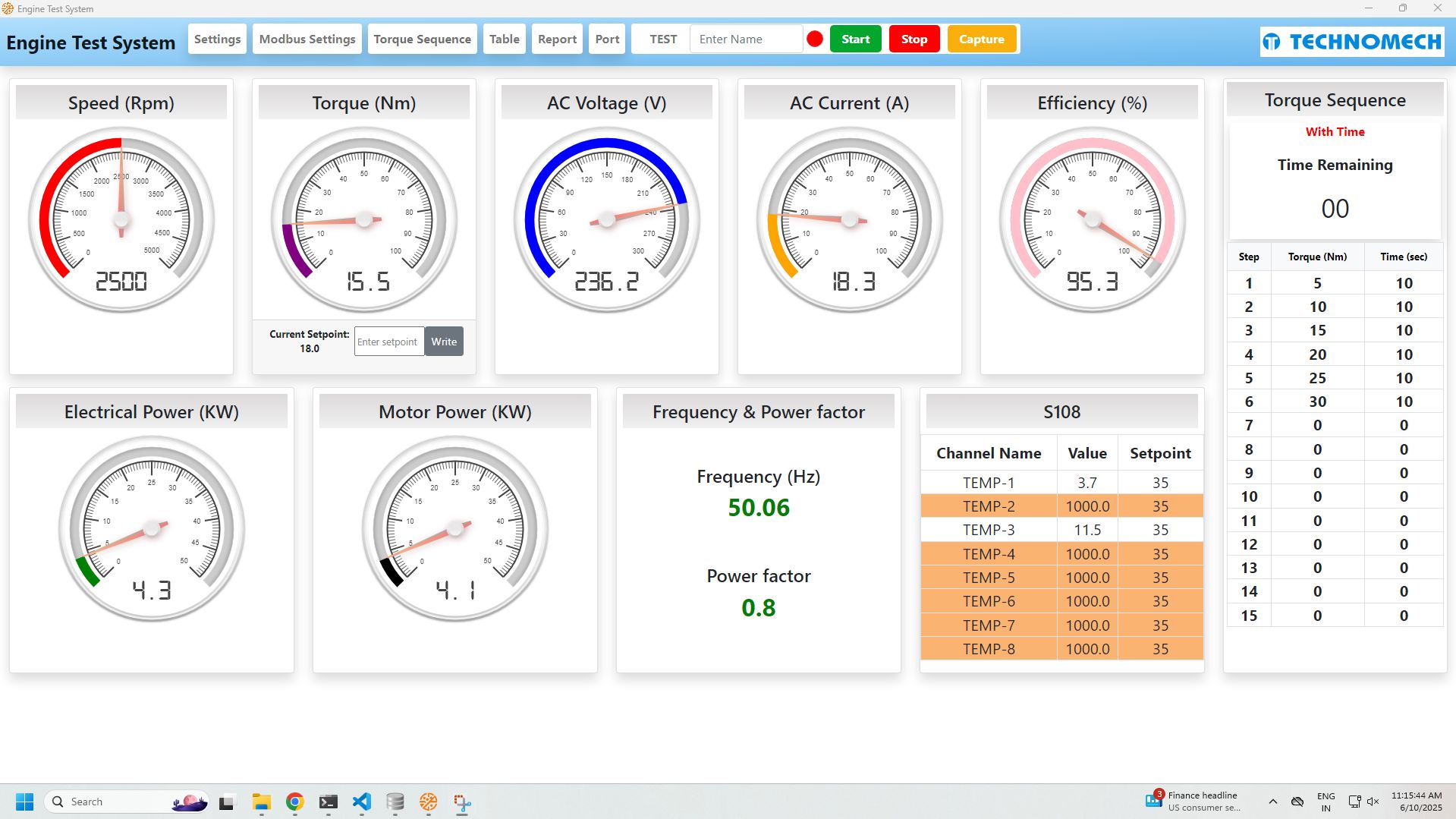

Dashboard: Displays real-time engine test parameters including speed, torque, voltage, current, power, frequency, power factor, efficiency, and temperature channels with visual indicators for continuous monitoring.

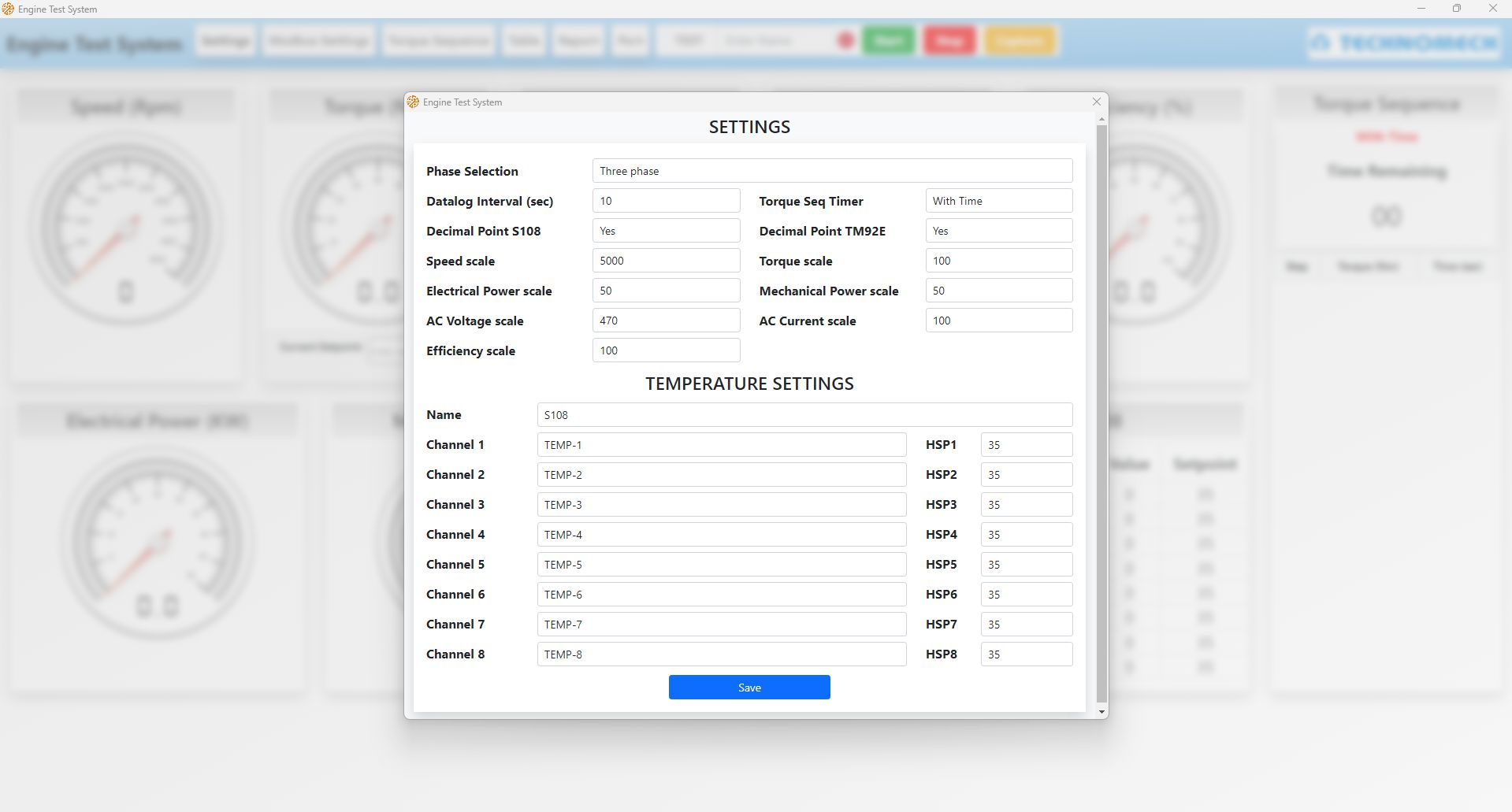

Settings: Allows configuration of system parameters such as phase selection, scaling values, logging interval, and temperature channel settings.

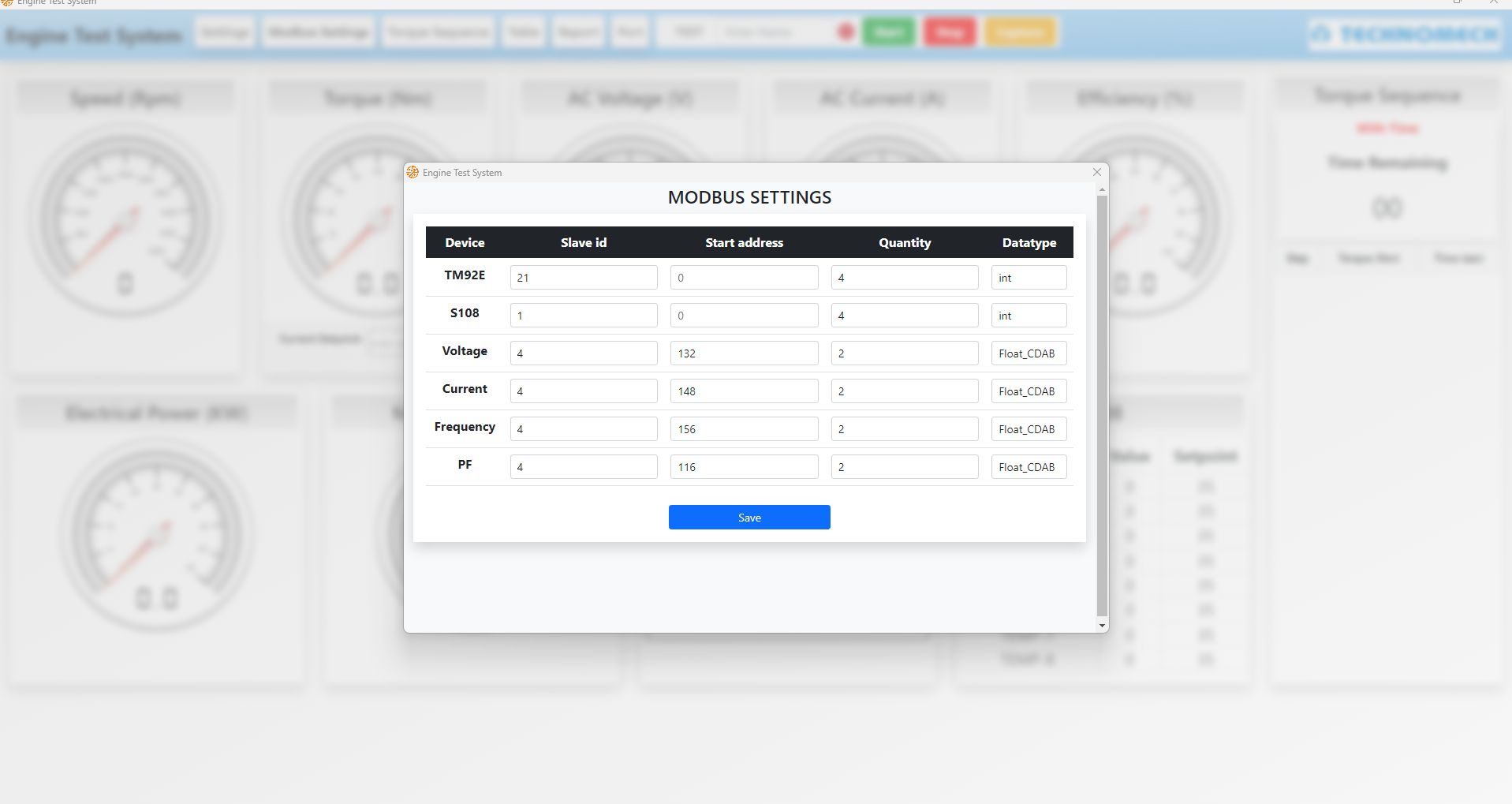

Modbus Settings: Enables configuration of communication parameters including device name, slave ID, register addresses, and data types for connected field devices.

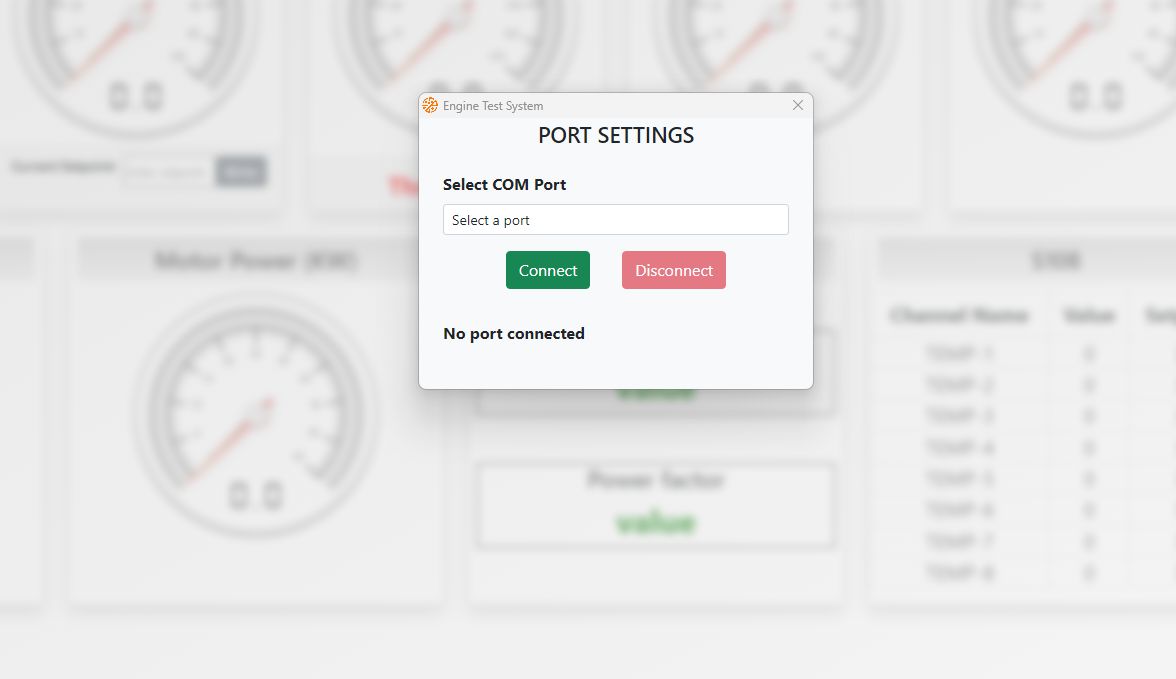

Port Settings: Provides options to connect or disconnect hardware devices through selected COM ports for establishing communication with the system.

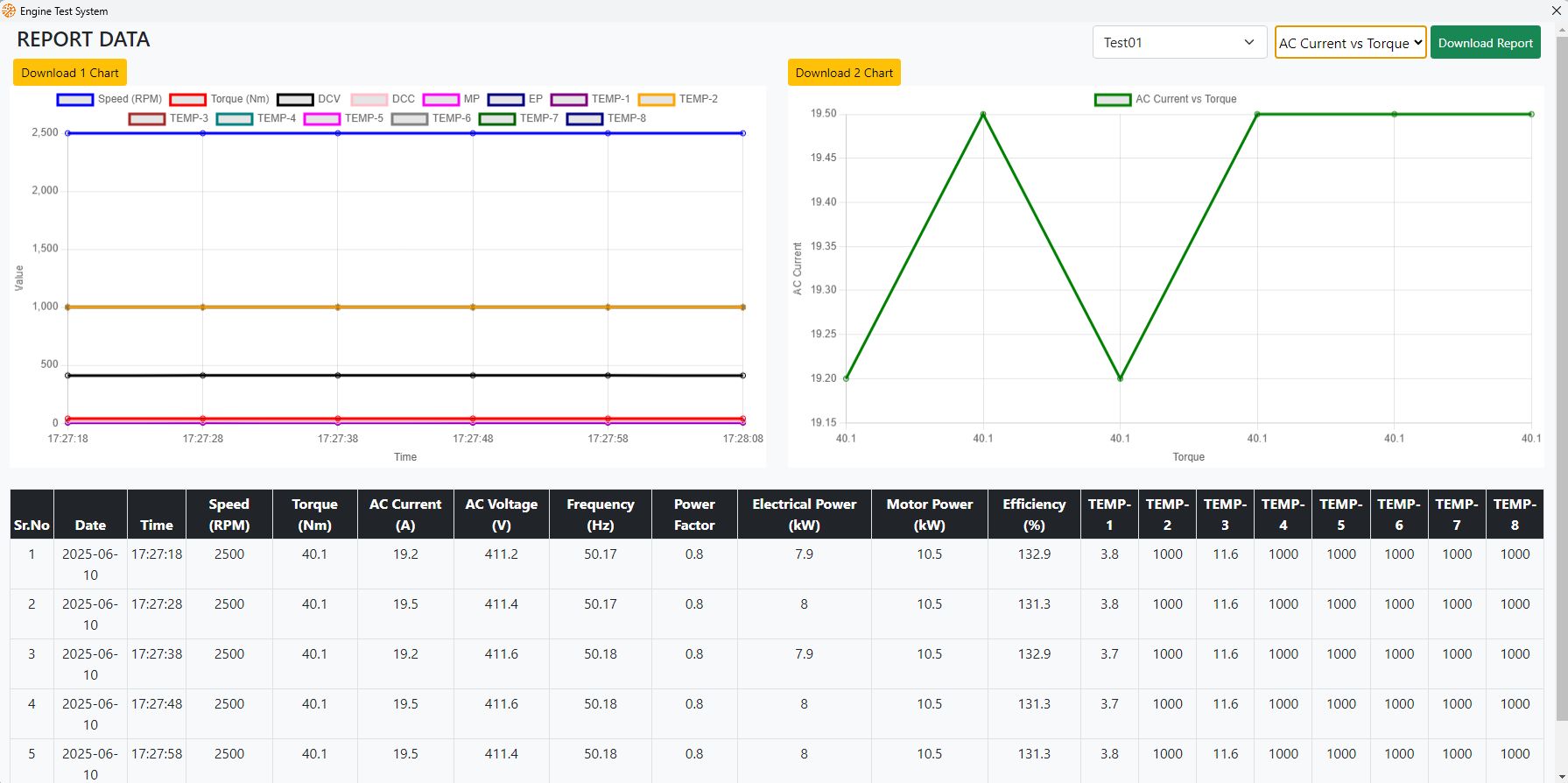

Reports: Displays recorded engine test data in graphical and tabular formats, allowing users to analyze performance trends and download charts or reports for documentation.
