| 1 |
Model |

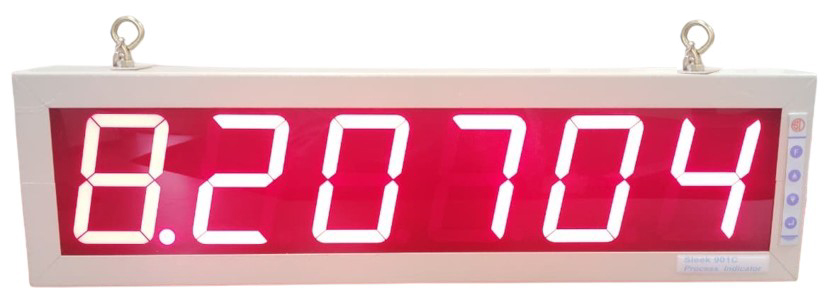

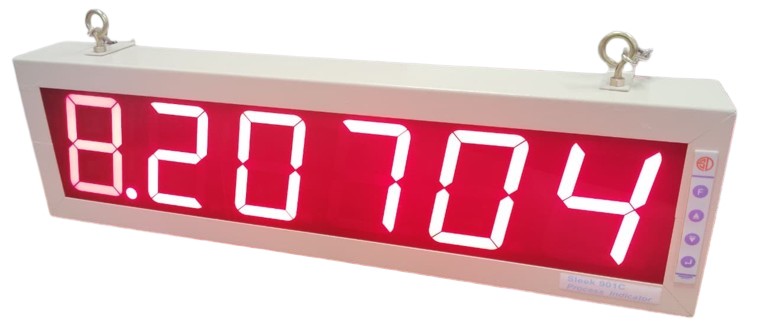

Sleek 901C-6 |
| 2 |
Input |
4-20 mA / 0-20 mA / 0-10 V / from Load Cell |
| 3 |
Indication |
6 digits 100mm Super Bright Red LED |
| 4 |
Indication Accuracy |
+/- 0.25% of full scale +/- 1 digit |
| 5 |
Programming |
4 key membrane keypad |
| 6 |
Calibration |
Software based |
| 7 |
Power Supply |
230 V AC, +/- 10% (other options on demand) |
| 8 |
Mounting |
Wall Mounting and Hanging for ceiling both options in-built. (Panel Mounting optional) |
| 9 |
Dimensions |
608 x 168 mm, Depth: 70 mm |
| 10 |
Optional |
Available in Panel Mounting 610 x 170 mm cutout |
