| 1 |
Model |

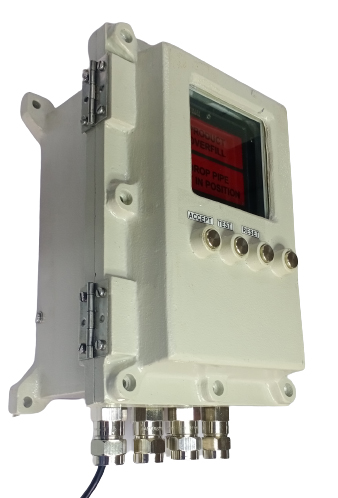

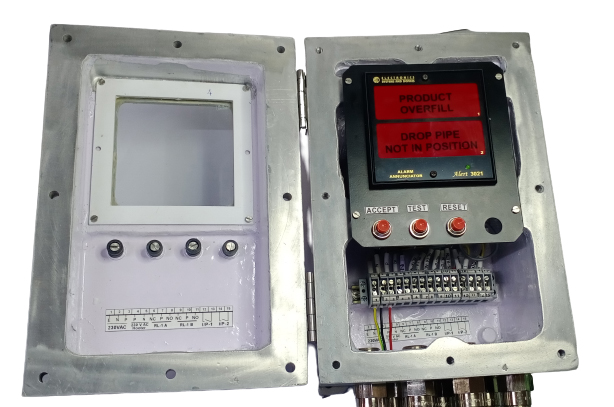

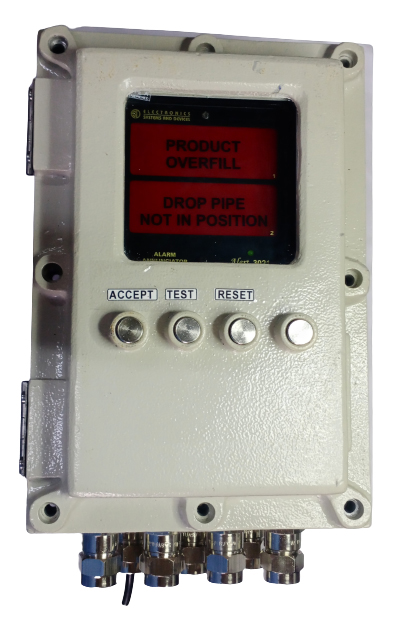

Alert 3021 |
| 2 |
Input |
2 numbers of potential free contacts, optically isolated |
| 3 |
Input Type |
Make or Break to alarm individually selectable |
| 4 |
Push Buttons |
Test, Accept, Reset Push Buttons on front facia and external on back panel |
| 5 |
Operating Sequence |
4 ISA standard sequences, Factory Set to Auto Reset |
| 6 |
Window Size |
67 x 37 mm |
| 7 |
Enclosure |
CCOE Approved Flame Proof Enclosure for Group IIA & IIB |
| 8 |
Dimensions |
L: 280 x W: 140 x D 175 mm approximate |
| 9 |
Weight |
8-9 kgs |
| 10 |
Cable Glands |
7 Nos. of Flameproof Double Compression Glands |
| 11 |
Output |
3 Relay C/o Contact 1 Each for Hooter Lamp |
| 12 |
System Healthy |
Flashing Green LED |
| 13 |
Power Supply |
230 V AC, +/- 10% (other options on demand) |
